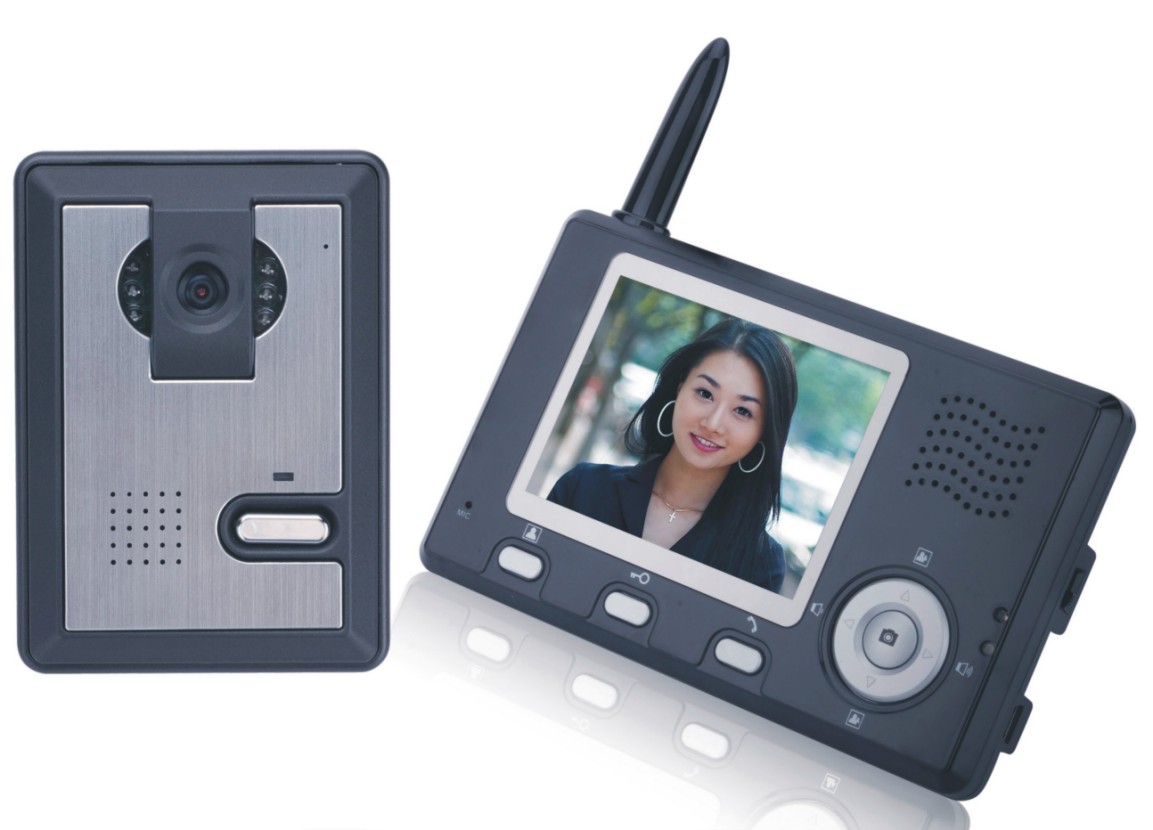

BMI-VDP-V1

Features: 3.5' wide angle LCD screen looks comfortable;• Battery bar display on screen, to know when to charge it;• Removable battery in Indoor Unit, convenient to use and maintenance;• Signal display on screen, to know the best communicating distance;• Auto photo record function when nobody answer the call;•Manual photo record function;• Wide angle lens and IR night version camera, work well even in dark enviroment;• 2.4G Frequency-Hopping Spread Spectrum technology afford stable A/V signal transfer;• Low power consumption;• One outdoor unit could support up to 4 indoor units, and vice-versa.

Working Distance:300Meters/328Yards (No-obstacle circumstance)Video Compression: MJPEG
Audio Compression: ADPCM  Frequency: ISM 2,400~2,483 MHz
Transmission Power: 17dBm  Modulation: GFSK
Working Temperature: -15°C~55°C/5°F~131°F
Working Humidity: <85%

Outdoor Camera
Camera: 1/4' CMOS 300K pixels
Mini Illuminance: 0Lux (IR on)
Night Version: 6 IR LED lights, visible within 2 meters
Adapter Input: AC100~ 240V, 50/60Hz
Adapter Output: DC12V/1A
Power Consumption: Standby: 0.12W; Working: 1.8W
Installation: Wall mounted
Size: 125*94*25mm
Material: ABS Plastic & Aluminum alloy

Indoor Monitor
Screen: 3.5' wide angle(65 °) LCD screen  Resolution: 320*240 pixels Image Record: Around 160 pieces color photos
Battery Bar Display: 5 grades
Signal Display: 6 grades
Power: By removable& rechargeable Lithium battery
Battery: 1350mAh; 3.7V
Power Consumption: Standby: 10mAh(0.04W); Working: 120mAh(0.45W); Max: 150mAh(0.56W)  Battery working time: Standby: 135 hours; Continous working: 10 hours  Charging time: 2~3hours (above 5 hours for the first time)
Adapter Input: AC100~ 240V, 50/60Hz   Adapter Output: DC5V/1A   Installation: Wall mounted/lift on desk/Portable
Material: ABS Plastic
Size: 141*87*19.5mm
